Graphite™
2D/3D CAD
More About v9

Read about OS support

Computer-aided drafting the way it should be.™

Greater Usability Enhancements

Enlarged Text for User Interface Items

Graphite v9 offers enlarged fonts for the text on snaps, message and status lines, dialog boxes and other user interface items.

Updated & Enlarged Icons

Graphite v9 offers both standard and enlarged icons include a new updated set in our improved tool palettes.

Tool Tips

These terrific tools remind new users what each tool does.

Help Tool Hyperlink

Every tool tip hyperlinks to the appropriate page in the PDF documentation for more information about that tool.

Visual Assistance

Cursor
There are now three cursor options: Standard Size, Double Size, and System which allows the use of assistive technologies like Apple’s Accessibility tools and Microsoft’s Ease of Access Center.

Scaled Line Weights
Now when using very high resolution monitors, drawing line weights can be appropriately scaled up (2x or 4x) for better visibility.

Font Menu
The fonts on the Graphite top-level menu can be double sized for easy viewing. (Windows only.)

New Features & Functions

General Function Tool Palette

A new tool palette with functions like Open, Save, New and Print has been added so these functions can be quickly found on high resolution screens.

New Construction Line Tool Icon

The main tool palette now sports a new icon so that construction lines are easier than ever to add to your drawing.

Infinite Grid and Construction Lines

Now the grid and construction lines are both endless.

Copy Item by Path Function

This new function lets you duplicate an array of objects along a spline or other designated path.

Stretch Tool

This new tools stretches selected entities along an axis.

Visual Color Selection Palettes

The Edit Object Dialog boxes now sport color palettes in addition to the old drop down lists for color selections.

Drag & Drop Re-ordering in Layers, Sheets, and Models dialogs

Now within the dialog boxes layers, sheets and models can all be easily re-ordered by simply dragging and dropping at the desired location.

Increased Redraw Speed

Redraw Interrupt

Now the entire screen does not have to draw with each zoom movement of the scroll wheel. Zoom in a little with the mouse. As the screen starts to redraw, move the mouse wheel again to refine the zoom level without having to wait for the entire screen to redraw each time.

Grid Display

Pans, zooms and moves are now all faster even when the grid is turned on.

Import Export Enhancements

Latest DXF/DWG Support

Support for importing and export the latest versions of DXF/DWG are included in v9 including 2010, 2012 and 2013.

PDF Import

Now 2D PDFs can be imported and opened in Graphite v9.

PDF Large Size Export

Graphite v9 can export files to PDF’s largest size of 200in × 200in (508cm × 508cm.)

Drawing Size Window Supports PDF Page Size

Within Graphite v9 PDF pages sizes are now defined within the Drawing Size Window and are completely independent of the printer. In addition, each Graphite sheet can have it’s own print size and area and PDF page size and area.

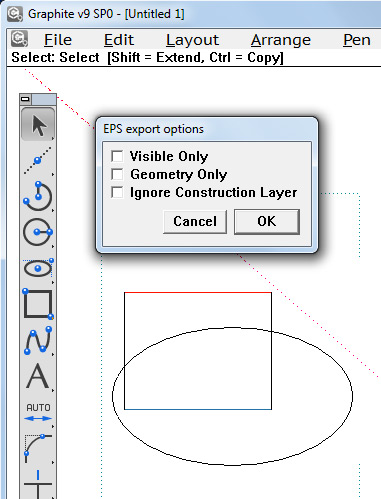

EPS Export Enhancements

We’ve added some options to the EPS export function including Visible Only, Geometry Only and Ignore Construction Layer.

International Enhancements

Unicode Core Base

Unicode allows Graphite to support multiple languages, fonts and alphabets within the same CAD file, as well as assures that languages compiled and updated together into one version.

Support for Hebrew Typing

Graphite v9 now supports the right to left typing of Hebrew. (Windows only)

Support for 11 languages

Graphite v9 now has full support for 11 different languages:

  • English (US & UK)
  • French
  • German
  • Italian
  • Japanese
  • Portuguese
  • Spanish
  • Slovak
  • Swedish
  • Russian
  • Ukrainian

Support for Files from Pirated Versions of Graphite and Vellum

Customers who unwittingly purchased software based upon stolen versions of the Graphite and Vellum code base can now be welcomed back into the Ashlar-Vellum fold using Graphite v9 to read their old files.

For Graphite v8 Users

Upgrade from v8 to v9 at pre-release and early adaptor pricing. Electronic-only download. Click here to buy now through our on-line web store:

Standard Jan. 1, 2014 on US $245.00

Anyone who purchased Graphite v8 on or after October 1, 2013 will receive Graphite v9 for free.

For Graphite v7 Users

Upgrade from v7 to v9 at pre-release and early adaptor pricing. Electronic-only download. Click here to buy now through our on-line web store:

Standard Jan. 1, 2014 on US $695.00
